FarEarth Workflow configuration

Background

FarEarth uses the concept of workflows to direct the system on how to process data. Workflows define the individual processing steps and their parameters. This subsystem tracks the progress of processing orders and manages the authorisation to execute specific tasks.

A workflow is usually triggered by data arriving at a pickup point. There are several other methods of starting workflows in FarEarth.

note

Only admins can create and edit workflows in FarEarth. You must have access to the Director resource or a bundled self-hosted application

Examples

Example 1: generic image orthorectification, with radiometric and geometric validation

note

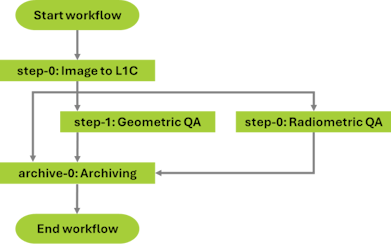

This example shows a workflow with a generic Level 1C processor, followed by some QA and archiving steps processed in parallel. The results of the QA steps are then also archived

Below are the workflow features steps.

• Three processing steps
  1. Level 1C processing
  2. Geometric QA
  3. Radiometric QA
• An archiving step
• The paths object at the bottom links the steps to each other
  • After processing the Level 1C in step-0, the output is processed in parallel by step-1 and step-2, and archived in archive-0
  • The output from step-1 and step-2 are archived separately

{
    "id": "farearth.workflow-generic-image-to-ortho-geo-and-radio",
    "displayName": "SmallSat Workflow",
    "shareable": true,
    "steps": [
        {
            "id": "step-0",
            "displayName": "Image-to-L1C",
            "executorId": "farearth.smallsat-ortho",
            "parameters": {
                "dataHostId": "farearth.azure-host-0",
                "publishDiagnostics": true,
                "ortho": {
                    "weithingMethod": "DENOMINATOR"
                }
            }
        },
        {
            "id": "step-1",
            "displayName": "Geometric-QA",
            "executorId": "farearth.qa-geometric",
            "parameters": {
                "publishDiagnostics": true,
                "dataHostId": "farearth.azure-host-0"
            }
        },
        {
            "id": "step-2",
            "displayName": "Radiometric-QA",
            "executorId": "farearth.qa-radiometric",
            "parameters": {
                "publishDiagnostics": true,
                "dataHostId": "farearth.azure-host-0"
            }
        },
        {
            "id": "archive-0",
            "displayName": "Archiving",
            "executorId": "farearth.azure-archive-0",
            "multi": true
        }
    ],
    "paths": {
        "step-0": ["step-1", "step-2", "archive-0"],
        "step-1": ["archive-0"],
        "step-2": ["archive-0"]
    }
}

Example 2: generic image orthorectification, with geometric validation only

Below are the workflow features steps.

• Two processing steps
  1. Level 1C processing
  2. Geometric QA
• An archiving step
• The paths object at the bottom links the steps to each other
  • After processing the Level 1C in step-0, the output is processed in step-1 and archived in archive-0 (in parallel)
  • The output from step-1 is archived separately

{
    "id": "farearth.workflow-generic-image-to-ortho-geo-only",
    "displayName": "SmallSat Workflow Geo Only",
    "shareable": true,
    "steps": [
        {
            "id": "step-0",
            "displayName": "Image-to-L1C",
            "executorId": "farearth.smallsat-ortho",
            "parameters": {
                "dataHostId": "farearth.local-s3-host-0",
                "publishDiagnostics": true,
                "ortho": {
                    "weightingMethod": "DENOMINATOR"
                }
            }
        },
        {
            "id": "step-1",
            "displayName": "Geometric-QA",
            "executorId": "farearth.qa-geometric",
            "parameters": {
                "publishDiagnostics": true,
                "dataHostId": "farearth.local-s3-host-0"
            }
        },
        {
            "id": "archive-0",
            "displayName": "Archiving",
            "executorId": "farearth.local-s3-archive-0",
            "multi": true
        }
	],
    "paths": {
        "step-0": ["step-1", "archive-0"],
        "step-1": ["archive-0"]
    }
}

Example 3: enterprise processing

This example requires specific processing components. The Level 0 processing step ingests raw data. It has a specific processing component to prepare it for further processing.

Below are the workflow features steps.

• Two processing steps
  1. Level 0 processing (note the unique 'trubit-1' processor)
  2. Level 1A processing
• An archiving step
• The paths object at the bottom links the steps to each other
  • The data is processed in step-0. The results are processed in step-1 and archived in archive-0 (in parallel)
  • The output from step-1 is archived separately

{
    "id": "farearth.trueorbit",
    "displayName": "Trueorbit Raw-L1A workflow",
    "description": "A Trueorbit Raw-L1A workflow",
    "shareable": true,
    "steps": [
        {
            "id": "step-0",
            "executorId": "farearth.trubit-1-raw-to-l0",
            "displayName": "RAW-to-L0",
            "parameters": {
                "publishDiagnostics": false,
                "dataHostId": "farearth.azure-host-0",
                "subsetting": {
                    "overlap": 256,
                    "rows": 16384
                }
            }
        },
        {
            "id": "step-1",
            "executorId": "farearth.generic-l0-to-l1a",
            "displayName": "L0-to-L1A",
            "multi": true,
            "parameters": {
                "dataHostId": "farearth.azure-host-0",
                "radiometrics": {
                    "method": "NONE",
                    "rpfCorrection": "NONE"
                }
            },
            "inputs": {
                "0": [
                    {
                        "productType": "L0"
                    }
                ]
            }
        },
        {
            "id": "archive-0",
            "executorId": "farearth.azure-archive-0",
            "displayName": "Archiving",
            "multi": true
        }
    ],
    "paths": {
        "step-0": ["step-1", "archive-0"],
        "step-1": [ "archive-0"]
    }
}

Example 4: archive only

This simple workflow archives the input data without any processing. There is only one archive-0 step.

{
    "id": "farearth.archive",
    "displayName": "Archive workflow",
    "steps": [
        {
            "id": "archive-0",
            "executorId": "farearth.azure-archive-0"
        }
    ]
}

Workflow details

The table below lists the various fields in a workflow configuration.

Field	Examples	Details
id	farearth.workflow-generic-image-to-ortho-geo-and-radio farearth.trueorbit farearth.archive	Unique identifier of the workflow. The ID starts with the subscription ID (example, farearth). This ID is used to provide access to the workflow for specific users and subscriptions. It tracks any activity related to the workflow.
shareable	true false (default)	Controls if the workflow may be shared with other subscriptions. NOTE: setting this to true does not yet share the workflow.
steps	step-1, archive-0	This contains the processing steps for the workflow. Each step has more parameters. See step parameters
paths	"step-0": ["step-1", "archive-0"], etc.	The sequence the workflow steps are to be execute. The key selects the input step. The output will be processed in parallel by the steps listed as the value of this parameter. EXAMPLE: on the left, the output of step-0 will be processed by both step-1 and the archive-0 steps.

caution

If the shareable flag is set to true, the workflow can be shared by the admin user from the SUBSCRIPTIONS page

Step parameters

Field	Example	Details
executorId	farearth.generic-l0-to-l1a	The ID of the executor that will be used in this processing step
multi	false	Allows for parallel job processing in the step if true. If false, each job in the step will process sequentially. See NOTE below
optional	false	If true, this step can fail without the order as a whole failing

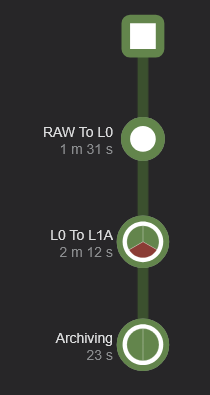

continueOnFail	false	If true, subsequent steps in the workflow of any job that failed will continue to process (it requires optional to be set to true). See continue on fail
parameters		Contains the custom parameters specific to this processing step. See parameters
dataHostId		The data host ID where the results of the step will be stored temporarily. It must be accessible by subsequent steps

note

A processing step can produce multiple outputs while it is processing. To allow for performance optimisation, the individual output products can be processed by subsequent steps in parallel. If the subsequent step has the multi flag set to true, it means that it will wait for the previous processing steps to finish before processing furher

Parameters

Within the parameters, an optional attachProperties tag can be specified. All key-value pairs within attachProperties will be added to the products generated by the processing step.

note

For more information, see processor-specific documentation

Continue on fail

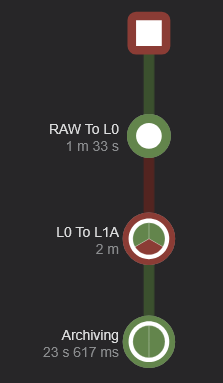

When a step in the workflow is configured to be optional, an order will not fail if a job for a specific step fails. Further jobs for that step will only be scheduled if the continueOnFail parameter is set to true.

Additional auxiliary files for archived products

By default, the archiving step will create STAC JSON files. Additional files can be added to each archived product.

For more information, see: auxiliary file generation.

Related links

• Auxiliary file generation
• Related links #2
